5065 - 5066

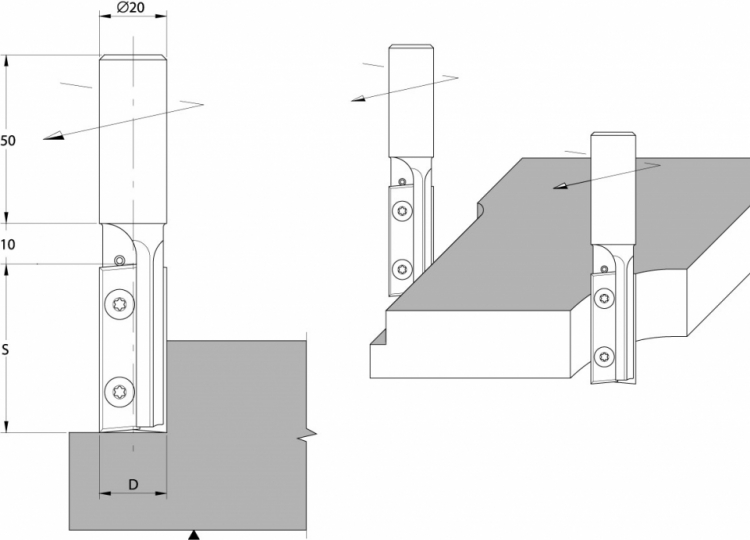

Sizing insert router cutters

Precision tools for CNC machines

Material

Panel sizing and rabbeting.

Product for

CNC router.

Packaging

Manufactured with indexable micrograin solid carbide knives. If not specified we will supplied the tools with d. 20x50 cylindrical shank and RH rotation.

hw mec z2

More info

Do you want to customize this product?
If you have a specific need, fill out the request, click here

Slide the table to the right

Code	Description	D	S	Rpm max	Knife	Screw	Key
Code	Description	D	S	Rpm max	Knife	Screw	Key
5065 020 030	Code Rh	20	30	20000	8145.308.012	8330.035.004	8345.015.000
5066 020 030	Code Lh	20	30	20000	8146.308.012	8330.035.004	8345.015.000
5065 020 050	Code Rh	20	50	20000	8145.508.012	8330.035.004	8345.015.000
5066 020 050	Code Lh	20	50	20000	8146.508.012	8330.035.004	8345.015.000
