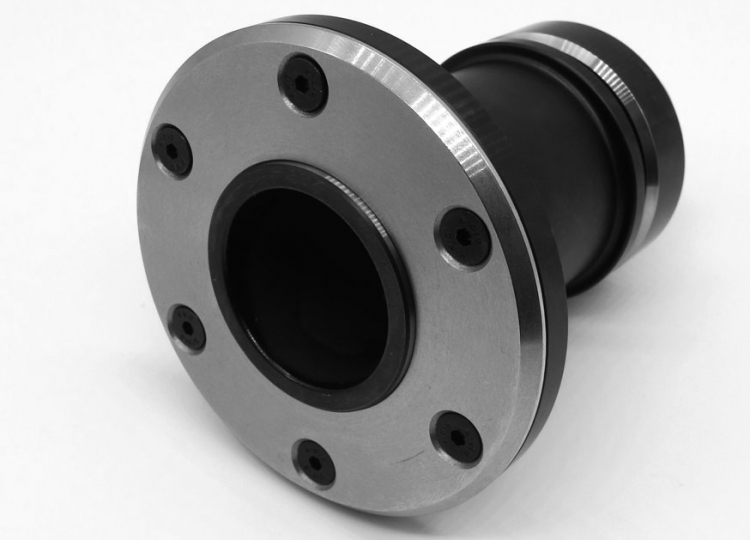

CNC ROUTER SAW BLADE HOLDER WITH FIXING FLANGE
Material
Saw blade holder 30 mm bore and 50 mm bore with fixing flange
Product for
Routers and CNC working centers
Packaging

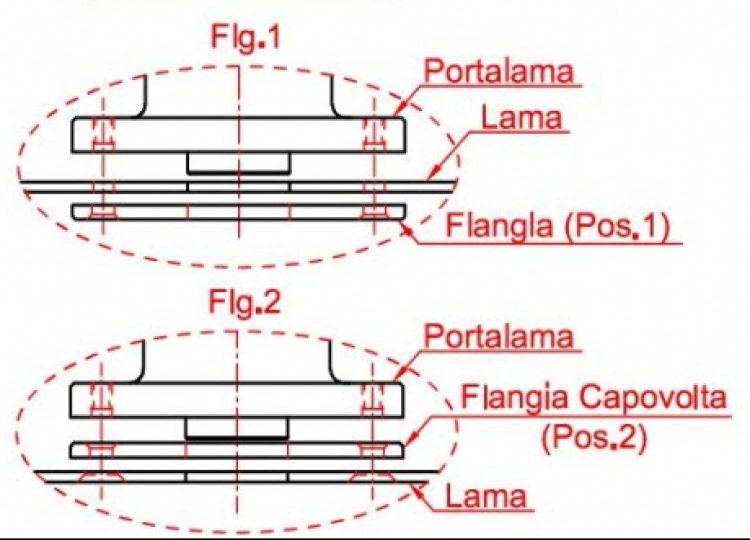

Manufactured with steel body to hold saw blades with 30 mm bore and Max diameter of 300 mm (cod. 4110 000 001) - with 6 threaded holes for M6 screws provided with the shaft, or saw blades with 50 mm bore and Max diameter of 350 mm (cod.4110 000 002) – with 6 threaded holes for M5 screws provided with the shaft, the fixing flange can be used in two different ways : on the front to hold the saw blade between the holder and the flange itself (drawing nr.1 ) or behind the saw blade to have it flush mounted ( drawing nr.2). Saw blade to be ordered separately
Slide the table to the right

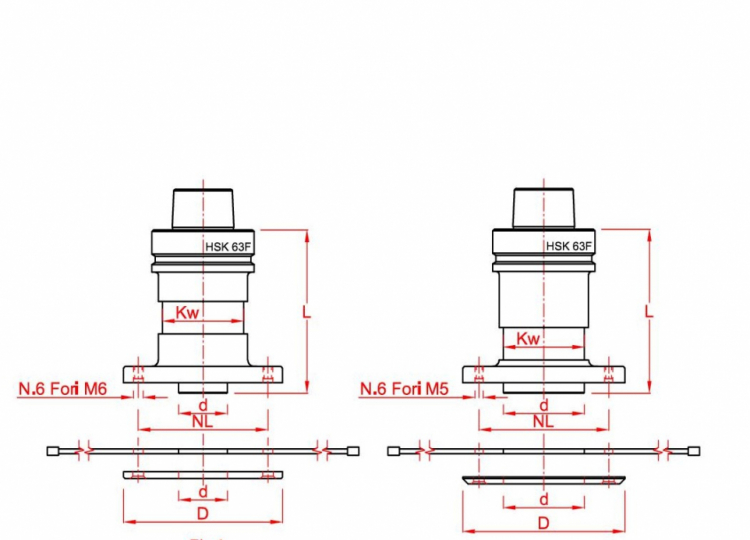

| Code | Type | D | d | L | NL | Shank |
|---|---|---|---|---|---|---|
| Code | Type | D | d | L | NL | Shank |
| 4110 030 000 | A | 98 | 30 | 100 | 6/M6/80 | HSK63F |
| 4110 050 000 | B | 100 | 50 | 101 | 6/M5/80 | HSK63F |
CNC ROUTER SAW BLADE HOLDER WITH FIXING FLANGE
