ADJUSTABLE GROOVING CUTTER SET
Material
Grooving operations with different thickness, adjustable with shims
Product for
Single spindle moulder, 4 sides moulder, double end tenoner
Packaging

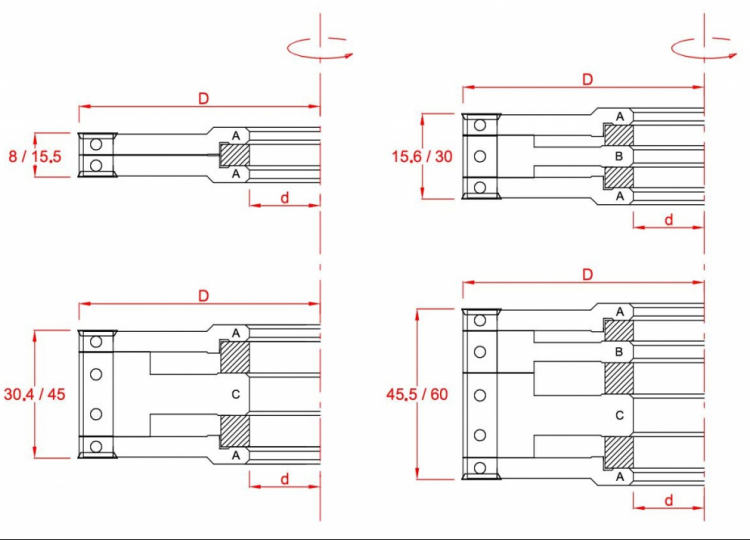

Toolset made by 4 coupling elements to reach different groove thicknesses, 2 external elements make a 8 : 15 mm adjustable cutterhead with 4 knives and 4 spurs, the 2 additional elements ( 15 mm and 30 mm thick) with 2 knives each will make possible to reach bigger thicknesses up to 59 mm. Manufactured with steel body, bode diameter 30/35/40 and 50 mm to be confirmed with the order, adjusting shims provided with the toolset.
Slide the table to the right
| Code | D | B | d | Knife | Wedge | Screw | Spur | Spur screw |
|---|---|---|---|---|---|---|---|---|
| Code | D | B | d | Knife | Wedge | Screw | Spur | Spur screw |
| 2040200000 | 200 | 8÷59 | 30/35/40/50 | 8108.076.012 | 8280.070.000 | 8285.006.000 | 8120.140.002 | 8295.005.000 |
| 8108.150.012 | 8280.130.000 | 8285.008.000 | ||||||
| 8108.300.012 | 8280.260.000 | 8285.008.000 |
