Cutter head for door-frame
Material
Profiling of door-frames.
Product for
Shapers, moulders.
Packaging

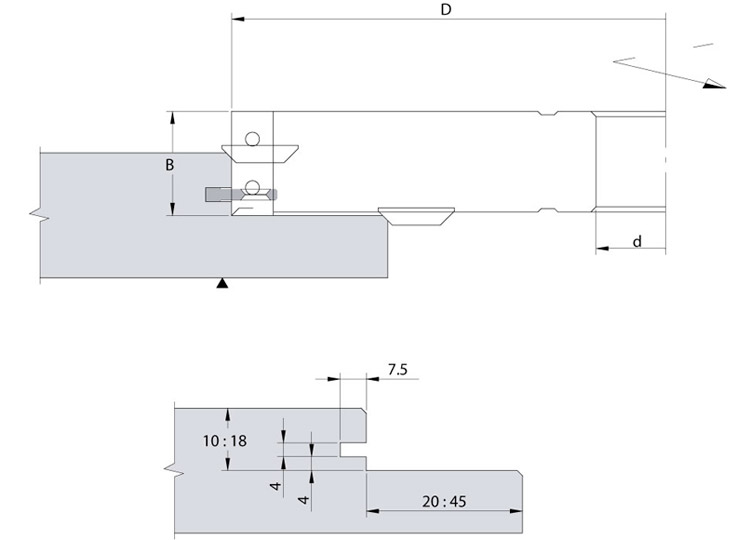

Manufactured with solid carbide micrograin knives. Produced with suitable cutting angles for solid wood. The rebate is adjustable as drawing. In the order please state the bore diameter “d”. n. 3.900-6.000 min -1Manufactured with solid carbide micrograin knives. Produced with suitable cutting angles for solid wood. The rebate is adjustable as drawing. In the order please state the bore diameter “d”. n. 3.900-6.000 min -1
Slide the table to the right
| Code | D | B | Knife | Wedge | Screw | Spur | Spur screw | Groove insert | Insert screw | 45° insert | 45° insert screw |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | D | B | Knife | Wedge | Screw | Spur | Spur screw | Groove insert | Insert screw | 45° insert | 45° insert screw |
| 3040 200 000 | 200 | 30 | 8108.300.012 | 8280.260.000 | 8285.008.000 | 8120.140.002 | 8295.005.000 | 8142.040.025 | 8305.005.000 | 8131.260.045 | 8300.005.000 |
