Adjustable tongue and groove cutterheads
Material

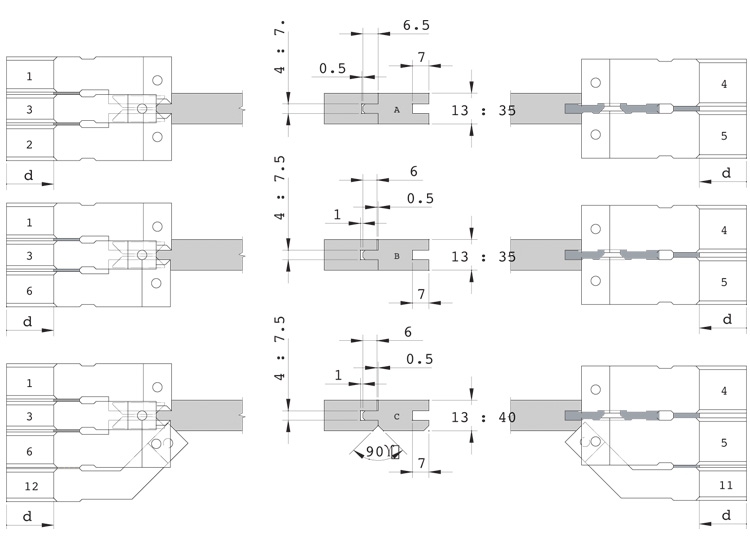

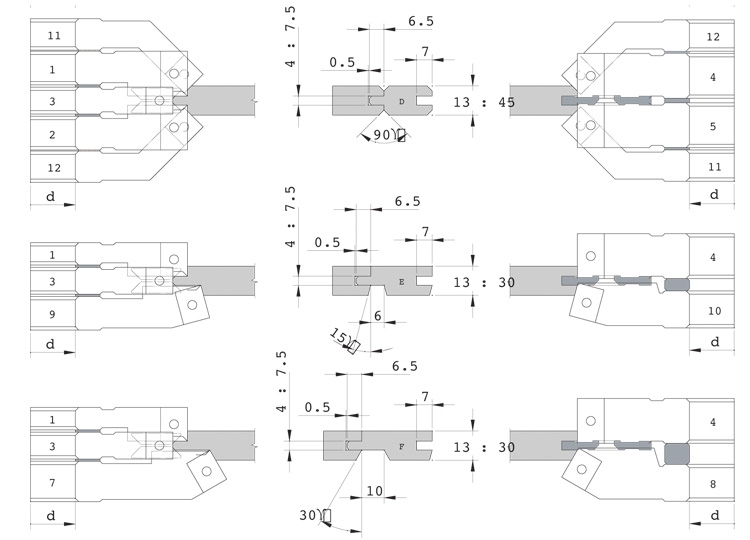

Production of 6 different types of tongue and groove profiles by the combination of 12 cutterheads suggested.Production of 6 different types of tongue and groove profiles by the combination of 12 cutterheads suggested.Production of 6 different types of tongue and groove profiles by the combination of 12 cutterheads suggested.
Product for
Moulders.
Packaging
Set of 12 interlocking cutterheads adjustable for various wood thickness. Cutter body made by high tensile steel. All cutters use standard solid carbide revesible knives. foro max d. 50 mm - RPM max 8.000 min-1
Slide the table to the right
| Code | D | S | Z | V | LS | Knife | Wedge | Screw | Spur | Spur screw | Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | D | S | Z | V | LS | Knife | Wedge | Screw | Spur | Spur screw | Insert |
| 2325 000 001 | 140 | 20 | 4 | 2 | 2 | 8108.200.012 | 8280.160.000 | 8285.008.000 | 8120.140.002 | 8295.005.000 | 8130.220.045 |
| 2325 000 002 | 140 | 20 | 4 | 2 | 2 | 8108.200.012 | 8280.160.000 | 8285.008.000 | 8120.140.002 | 8295.005.000 | 8130.220.045 |
| 2325 000 003 | 127 | 12 | 2 | - | - | 8108.120.012 | 8280.100.000 | 8285.008.000 | |||
| 2325 000 004 | 140 | 20 | 4 | - | 2 | 8108.200.012 | 8280.160.000 | 8285.008.000 | 8140.040.000 | ||
| 2325 000 005 | 140 | 20 | 4 | - | 2 | 8108.200.012 | 8280.160.000 | 8285.008.000 | 8140.040.000 | ||
| 2325 000 006 | 139 | 20 | 4 | 2 | 2 | 8108.200.012 | 8280.160.000 | 8285.008.000 | 8120.140.002 | 8295.005.000 | 8130.220.045 |
| 2325 000 007 | 175 | 15 | 4 | 2 | 2 | 8108.150.012 | 8280.130.000 | 8285.008.000 | 8120.140.002 | 8295.005.000 | 8130.220.045 |
| 2325 000 008 | 155 | 15 | 4 | - | 2 | 8108.150.012 | 8280.130.000 | 8285.008.000 | 8140.040.000 | ||
| 2325 000 009 | 160 | 15 | 4 | 2 | 2 | 8108.150.012 | 8280.130.000 | 8285.008.000 | 8120.140.002 | 8295.005.000 | 8130.220.045 |
| 2325 000 010 | 148 | 15 | 4 | - | 2 | 8108.150.012 | 8280.130.000 | 8285.008.000 | 8140.040.000 | ||
| 2325 000 011 | 154 | 12 | 2 | - | - | 8108.120.012 | 8280.100.000 | 8285.008.000 | |||
| 2325 000 012 | 154 | 12 | 2 | - | - | 8108.120.012 | 8280.100.000 | 8285.008.000 |
