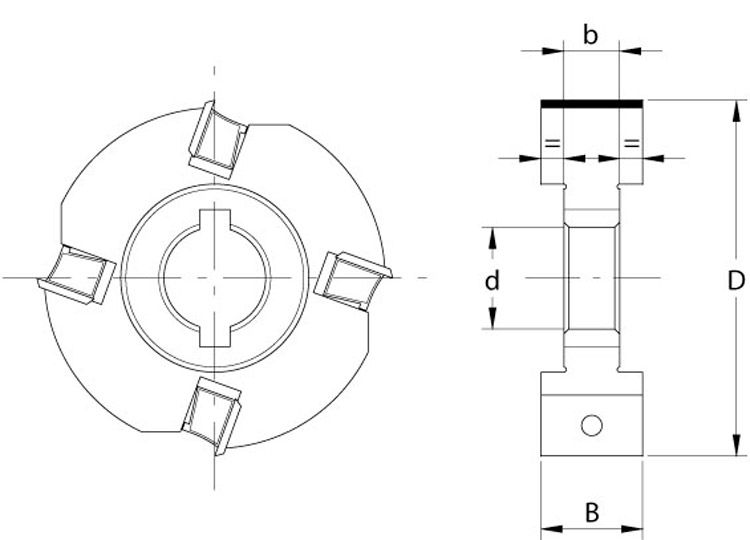

| Code | D | B | b | d | DKN | Knife | Wedge | Machine | Screw |
|---|---|---|---|---|---|---|---|---|---|
| Code | D | B | b | d | DKN | Knife | Wedge | Machine | Screw |
| 2235 050 000 | 50 | 12 | 10 | 16 | 5x2,3 | 8108.120.012 | 8280.100.000 | Homag | 8285.006.000 |
| 2235 050 001 | 50 | 12 | 10 | 16 | 5x2,3 | 8108.120.012 | 8280.100.000 | IMA | 8285.006.000 |
| 2235 050 002 | 50 | 20 | 10 | 16 | 5x2,3 | 8108.200.012 | 8280.160.000 | Holz-Her | 8285.006.000 |
| 2235 061 000 | 61 | 12 | 11 | 16 | 5x2,3 | 8108.120.012 | 8280.100.000 | Homag | 8285.006.000 |
| 2235 061 000 | 61 | 20 | 11 | 16 | 5x2,3 | 8108.200.012 | 8280.160.000 | Homag | 8285.008.000 |
| 2235 070 000 | 70 | 12 | 10 | 16 | 5x2,3 | 8108.120.012 | 8280.100.000 | Homag/Brandt | 8285.008.000 |
| 2235 070 001 | 70 | 20 | 11 | 16 | 5x2,3 | 8108.200.012 | 8280.160.000 | Homag | 8285.008.000 |
| 2235 070 002 | 70 | 20 | 11 | 20 | 6x3,5 | 8108.200.012 | 8280.160.000 | Holz-Her | 8285.008.000 |
| 2235 080 000 | 80 | 40 | 25 | 30 | 8x3,3 | 8108.400.012 | 8280.360.000 | Holz-Her | 8285.008.000 |
Fill out the form and request a quote for:

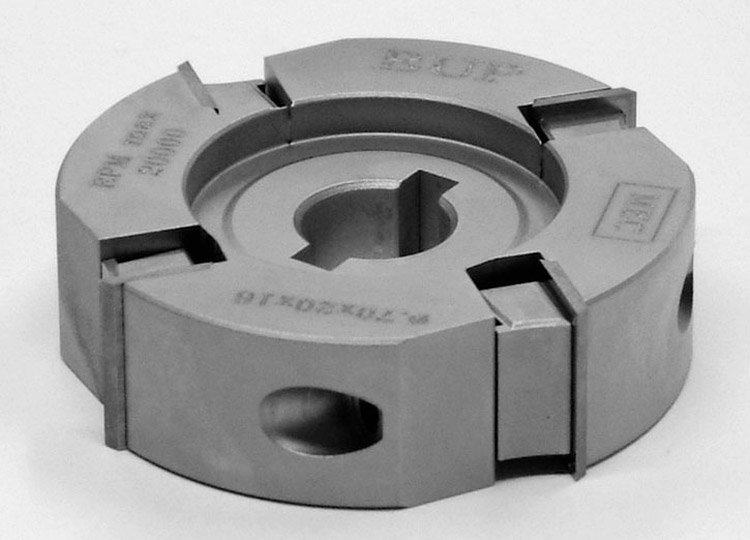

Cutterheads for edgebanding machines
