Solid hw spiral router cutters z=2 (finish cut)
Material
For boring and sizing on solid wood, chipboard and fibre materials (MDF - HDF).
Product for
CNC router.
Packaging

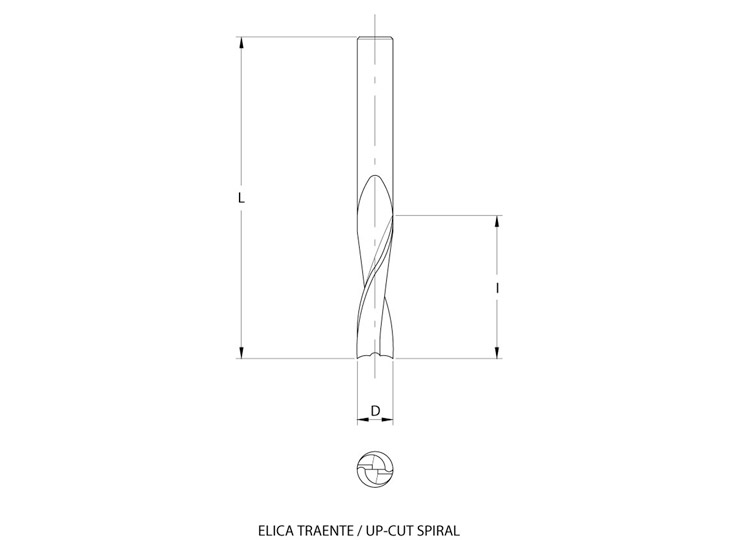

Dx/Rh Z=2. Manufactured with micrograin solid carbide. With 2 positive spiral cutting edges for an excellent finishing on the bottom of the workpiece. Upward chip evacuation. Up-cut spiralDx/Rh Z=2. Manufactured with micrograin solid carbide. With 2 positive spiral cutting edges for an excellent finishing on the bottom of the workpiece. Upward chip evacuation. Up-cut spiral
Slide the table to the right
| Code | D | I | L | |
|---|---|---|---|---|
| Code | D | I | L | |
| 4175 030 012 | 3 | 12 | 40 | Dx |
| 4175 040 012 | 4 | 15 | 40 | Dx |
| 4175 050 017 | 5 | 16 | 50 | Dx |
| 4175 060 017 | 6 | 17 | 50 | Dx |
| 4175 060 027 | 6 | 25 | 60 | Dx |
| 4175 080 022 | 8 | 22 | 63 | Dx |
| 4175 080 032 | 8 | 32 | 72 | Dx |
| 4175 100 032 | 10 | 32 | 72 | Dx |
| 4175 100 042 | 10 | 42 | 100 | Dx |
| 4175 120 032 | 12 | 32 | 73 | Dx |
| 4175 120 042 | 12 | 42 | 100 | Dx |
| 4175 120 052 | 12 | 52 | 100 | Dx |
| 4175 140 042 | 14 | 42 | 100 | Dx |
| 4175 140 052 | 14 | 52 | 100 | Dx |
| 4175 160 042 | 16 | 42 | 100 | Dx |
| 4175 160 052 | 16 | 52 | 100 | Dx |
| 4175 160 062 | 16 | 62 | 106 | Dx |
| 4175 180 052 | 18 | 52 | 100 | Dx |
| 4175 180 072 | 18 | 75 | 125 | Dx |
| 4175 200 052 | 20 | 52 | 100 | Dx |
| 4175 200 072 | 20 | 75 | 125 | Dx |
Solid hw spiral router cutters z=2 (finish cut)
