5070 - 5071

Plunging and sizing insert router cutters

Precision tools for CNC machines

Plunging and sizing insert router cutters

Material

Panel sizing with plunging capability.

Product for

CNC router.

Packaging

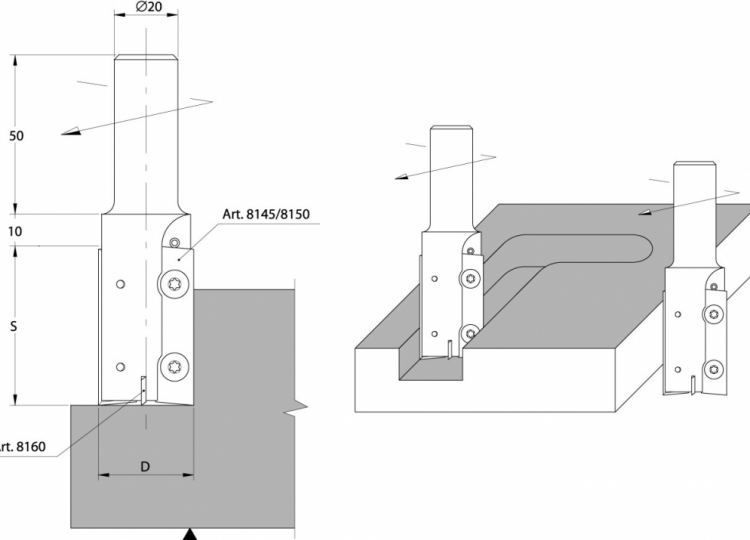

Manufactured with indexable micrograin solid carbide knives. The tools has vertical plunging capability. If not specified we will supply the tools with d. 20x50 cylindrical shank and RH rotation.

hw mec z2+1

More info

Do you want to customize this product?
If you have a specific need, fill out the request, click here

Slide the table to the right

Code	Description	D	S	Rpm max	Knife	Knife	Screw	Screw	Key	Key
Code	Description	D	S	Rpm max	Knife	Knife	Screw	Screw	Key	Key
5070 025 030	Code Rh	25	30	20000	8150.300.009	8160.024.010	8330.035.002	8315.004.003	8345.009.000	8345.015.000
5071 025 030	Code Lh	25	30	20000	8151.300.009	8161.024.010	8330.035.002	8315.004.003	8345.009.000	8345.015.000
5070 025 050	Code Rh	25	50	18000	8150.500.009	8160.024.010	8330.035.002	8315.004.003	8345.009.000	8345.015.000
5071 025 050	Code Lh	25	50	18000	8151.500.009	8161.024.010	8330.035.002	8315.004.003	8345.009.000	8345.015.000
5070 030 030	Code Rh	30	30	20000	8145.308.012	8160.024.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5071 030 030	Code Lh	30	30	20000	8146.308.012	8161.024.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5070 030 050	Code Rh	30	50	18000	8145.508.012	8160.024.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5071 030 050	Code Lh	30	50	18000	8146.508.012	8161.024.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5070 030 060	Code Rh	30	60	16000	8145.608.012	8160.024.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5071 030 060	Code Lh	30	60	16000	8146.608.012	8161.024.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5070 035 030	Code Rh	35	30	20000	8145.308.012	8160.033.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5071 035 030	Code Lh	35	30	20000	8146.308.012	8161.033.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5070 035 050	Code Rh	35	50	18000	8145.508.012	8160.033.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5071 035 050	Code Lh	35	50	18000	8146.508.012	8161.033.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5070 035 060	Code Rh	35	60	16000	8145.608.012	8160.033.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5071 035 060	Code Lh	35	60	16000	8146.608.012	8161.033.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5070 040 030	Code Rh	40	30	20000	8145.308.012	8160.033.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5071 040 030	Code Lh	40	30	20000	8146.308.012	8161.033.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5070 040 050	Code Rh	40	50	18000	8145.508.012	8160.033.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5071 040 050	Code Lh	40	50	18000	8146.508.012	8161.033.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5070 040 060	Code Rh	40	60	16000	8145.608.012	8160.033.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
5071 040 060	Code Lh	40	60	16000	8146.608.012	8161.033.010	8330.035.004	8315.004.003	8345.009.000	8345.015.000
