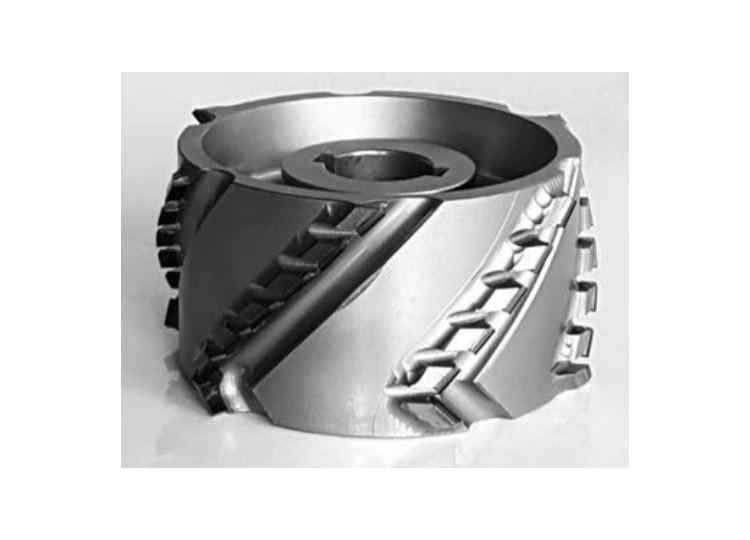

Edgebanding pcd jointing cutter – 45° shear angle.
Diamonds Tools
Material
Premilling cutter for finishing on MDF or particleboard coated panels.
Product for
Edge banding machines.
Packaging
Manufactured with steel body, multicut PCD inserts H5 mm with 45° shear angle – asymmetrical design, balanced G2,5 at 18000 RPM – The high number of tips and high shear angle grant an excellent finishing on the panel edge and a very good chip evacuation. Suitable for 8-10 resharpening.
Slide the table to the right
| Code | Description | D | B | d | Z | N° of tips |
|---|---|---|---|---|---|---|
| Code | Description | D | B | d | Z | N° of tips |
| 6587 080 048 | Lh Rotation | 80 | 48 | 30DKN | 3+3 | 30 |
| 6588 080 048 | Rh Rotation | 80 | 48 | 30DKN | 3+3 | 30 |
| 6587 080 063 | Lh Rotation | 80 | 63 | 30DKN | 3+3 | 39 |
| 6588 080 063 | Rh Rotation | 80 | 63 | 30DKN | 3+3 | 39 |
| 6587 100 048 | Lh Rotation | 100 | 48 | 30DKN | 3+3 | 30 |
| 6588 100 048 | Rh Rotation | 100 | 48 | 30DKN | 3+3 | 30 |
| 6587 100 063 | Lh Rotation | 100 | 63 | 30DKN | 3+3 | 39 |
| 6588 100 063 | Rh Rotation | 100 | 63 | 30DKN | 3+3 | 39 |
| 6587 125 048 | Lh Rotation | 125 | 48 | 30DKN | 3+3 | 30 |
| 6588 125 048 | Rh Rotation | 125 | 48 | 30DKN | 3+3 | 30 |
| 6587 125 063 | Lh Rotation | 125 | 63 | 30DKN | 3+3 | 39 |
| 6588 125 063 | Rh Rotation | 125 | 63 | 30DKN | 3+3 | 39 |
