2010

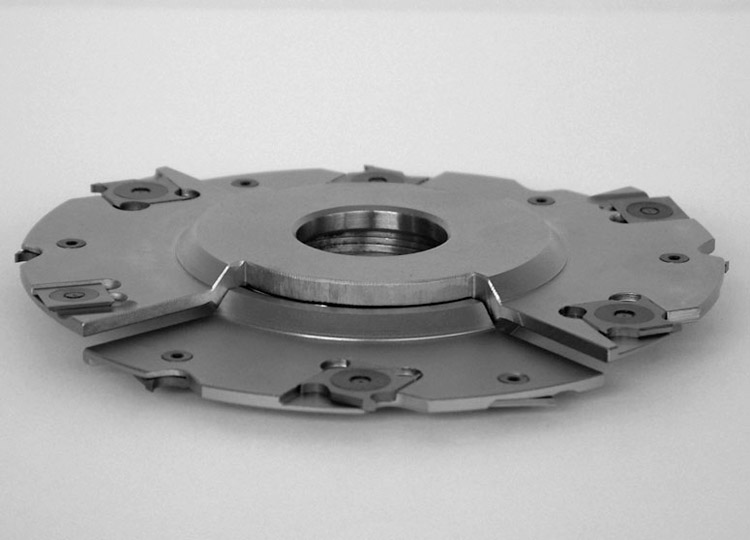

Adjustable grooving cutterhead

Cutter Heads

Material

For grooving cutting width adjustable with shims.

Product for

Shapers, moulders, double end tenoners.

Packaging

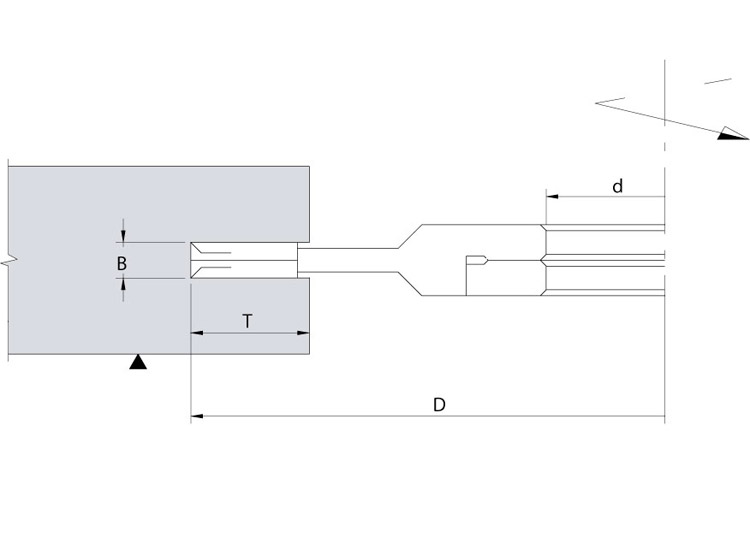

Bore “d” from 30 to 40 mm - manufactured in two pieces with 8 cutting edges and 4 spurs.
“T”= max 30 mm - n= 5.000/8.000 min^-1

Spacers rings on request, see art. 8370

man z8+4 hw

More info

Do you want to customize this product?
If you have a specific need, fill out the request, click here

Slide the table to the right

Code	D	B	Knife	Nut	Spur nut	Spur	Screw	Spur screw
Code	D	B	Knife	Nut	Spur nut	Spur	Screw	Spur screw
2010 150 004	150	4:7,5	8125.180.019	8320.004.001	8320.004.000	8120.140.001	8315.004.001	8315.004.001
2010 150 006	150	6:11,5	8125.180.029	8320.004.001	8320.004.000	8120.140.001	8315.004.002	8315.004.002
